Membrane Technology for Lemon Juice: Clarification, Cold‑Concentration & Cold Sterilization

Introduction

Fresh‑squeezed lemon juice contains fine pulp fragments, pectin, colloidal particles, yeast and mold spores. Without proper treatment, finished lemon drinks and concentrates will suffer from turbidity, sedimentation and short shelf‑life. Conventional thermal evaporation consumes large volumes of steam and brings obvious cooked taste; filter‑aid filtration generates solid waste and extra production steps.

Membrane separation becomes an ideal alternative for citrus processing. As a physical pressure‑driven separation method, cross‑flow membrane filtration works at ambient temperature, no chemical additives required. Three core membrane steps serve lemon‑juice production: clarification by microfiltration/ultrafiltration, low‑temperature concentration by nanofiltration, and membrane cold sterilization.

How Membranes Work Within Lemon Juice Processing

1. Ultrafiltration (UF): Clarification & Impurity Removal

After lemon pressing and coarse filtration, raw lemon juice flows into cross‑flow ultrafiltration units.

• Retained: fine pulp, pectin, protein colloids, yeast, mold and turbidity‑causing substances

• Permeate: citric acid, vitamin C, lemon flavor molecules and water

Ultrafiltration produces bright, haze‑free clarified lemon juice. It eliminates diatomaceous earth or other filter aids, reduces waste output, and prevents later sediment during storage. For highly acidic lemon juice, acid‑resistant ceramic or modified polymer membranes are selected to resist corrosion under low‑pH conditions.

2. Nanofiltration (NF): Ambient‑Temperature Concentration

Clarified lemon juice is usually high in water content, leading to expensive transportation and storage. Instead of heating evaporation, nanofiltration concentrates lemon juice at room temperature.

• Retained: citric acid, aroma substances, pigments and most nutritional components

• Permeate: excess water and partial small‑molecule salts

This cold‑concentration process avoids thermal damage. Fresh lemon fragrance and vitamin C remain well‑preserved. Concentrated lemon juice greatly reduces volume, lowering freight and warehouse costs for beverage factories.

3. Membrane Cold Sterilization

Specially sized sterile‑grade membrane modules remove yeast, bacteria and spoilage microorganisms physically. Juice receives effective microbial reduction without pasteurization heat input. It fits cold filling workflows for premium natural lemon‑flavored beverages.

Core Advantages of Membrane Systems for Lemon Juice

1. Superior flavor retention: All‑physical separation at room temperature, no cooked flavor, preserves original fresh lemon notes and vitamin C.

2. Stable finished‑product quality: Removes pectin and colloids to avoid post‑packaging precipitation and turbidity.

3. Cost‑saving concentration: Nanofiltration cuts transportation volume of liquid lemon raw material. Energy consumption is much lower than thermal evaporation.

4. Clean production: No filter‑aid consumables; supports automatic CIP cleaning for food‑grade hygiene requirements.

5. Flexible integration: Membrane equipment connects seamlessly to existing squeezing and filling lines without massive reconstruction.

Process Workflow Overview

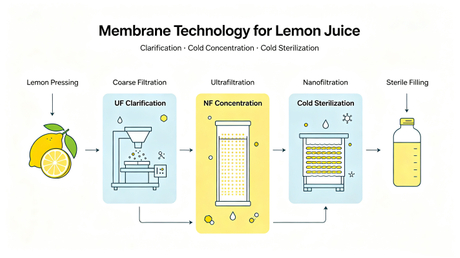

Lemon raw fruit → pressing → coarse filtration → UF membrane clarification → NF membrane cold concentration → membrane cold sterilization → aseptic storage / filling

Considerations for Lemon Juice Membrane Projects

Lemon juice features low pH and high pectin content, which may trigger membrane fouling. Project design needs:

1. Acid‑resistant membrane material selection for long service life under acidic feed liquid.

2. Optimized cross‑flow velocity to reduce fouling from pectin and colloids.

3. Complete CIP cleaning procedure with acid and alkali rinsing cycles to recover membrane flux regularly.

4. Pilot test first to confirm flux, recovery rate and product indexes before full‑scale equipment manufacturing.

Conclusion

Membrane technology brings huge value to lemon‑juice manufacturing, covering clarification, cold concentration and cold sterilization. It solves classic pain points including flavor loss, unstable clarity and high logistics cost. For beverage producers targeting high‑quality natural citrus raw materials, cross‑flow membrane separation offers a reliable, eco‑friendly and cost‑effective production solution.

Doupu provides pilot testing, process design and customized cross‑flow membrane systems for fruit‑juice processing worldwide. Feel free to contact us for your lemon‑juice and botanical‑extraction projects.
