Phytic Acid Purification & Concentration by Membrane Separation Technology

Pain Points of Traditional Phytic Acid Production

Phytic acid (myo‑inositol hexaphosphate) is normally acid‑leached from rice bran or grain meal. Crude feedstock contains large amounts of protein, polysaccharides, colloids, pigments and inorganic salts.

The classic workflow: plate‑and‑frame filtration + activated carbon decolorization + vacuum evaporation brings obvious drawbacks:

1. Poor clarification. Colloidal particles cannot be fully removed, increasing fouling load for downstream ion‑exchange resin and shortening resin service life.

2. High‑temperature evaporation causes phytic acid thermal decomposition and degrades final product quality.

3. Huge energy consumption, heavy chemical dosage and high wastewater treatment cost.

4. Unstable purity, hard to consistently meet food‑grade and pharmaceutical‑grade specifications.

Many phytic acid manufacturers are troubled by turbid filtrate, residual suspended solids, high evaporation cost and insufficient product purity.

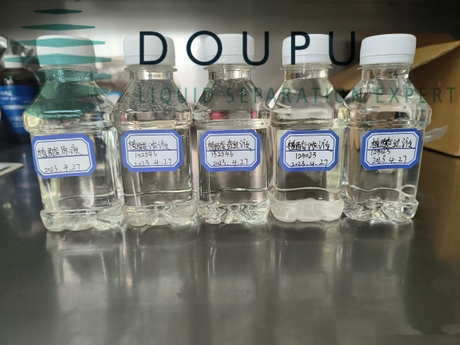

The picture shows lab test samples of phytic acid treated by membrane process. From left to right: raw phytic acid feed, membrane retentate samples and membrane permeate samples. Visual difference can be observed after membrane treatment.

Raw phytic acid feed is turbid with colloidal contaminants. After ultrafiltration, macromolecular impurities are intercepted. Subsequent nanofiltration concentrates phytic acid and removes partial inorganic salts. Clear permeate is obtained while phytic acid molecules are well‑preserved in retentate stream.

Membrane Separation Workflow: Lab Test to Industrial Scale

Combined membrane process: Pretreatment → Ultrafiltration impurity removal → Nanofiltration concentration & desalination.

All‑room‑temperature physical separation, minimal chemical addition.

1. Ultrafiltration (UF): Clarification & impurity removal

   Acid‑resistant ultrafiltration membrane is selected for acidic phytic acid liquor. Macromolecules including protein, polysaccharide, colloid and suspended solids are rejected. Small‑molecule phytic acid passes through membrane.

Benefits: Turn turbid feed into clear permeate. Reduce fouling risk for nanofiltration and ion‑exchange resin, extend resin cycle and cut chemical consumption.

2. Nanofiltration (NF): Integrate concentration and desalination

   Clarified UF permeate feeds into nanofiltration unit. Phytic acid is retained by NF membrane, while water and monovalent salts go into permeate side. Concentration and partial desalination are completed under room temperature to replace thermal evaporation.

Benefits: Raise phytic acid concentration, reduce salt content, avoid thermal damage to phytic acid, lower energy cost. Concentrated phytic acid retentate can go directly to further refining steps.

Lab pilot test is critical. Parallel sample tests (as shown in photo) evaluate different membrane types, operating pressure and flux data. Real test parameters support industrial equipment design and avoid investment risk.

Core Advantages of Membrane Technology for Phytic Acid

✅ Higher product quality

Remove colloid, protein and pigment efficiently. Crystal‑clear liquor output. Boost purity for feed‑grade, food‑grade and pharmaceutical‑grade phytic acid for better commercial value.

✅ Ambient‑temperature operation

No heating required. Prevent thermal decomposition of phytic acid and guarantee high component recovery.

✅ Significant energy saving

Nanofiltration concentration consumes only 10‑20% energy compared with thermal evaporation. Permeate water can be recycled to cut wastewater burden.

✅ Protect downstream process

Ultrafiltration removes most macromolecular foulants in advance. Reduce resin pollution, extend regeneration cycle and save acid‑base consumption.

✅ Flexible process retrofitting

Suitable for new production lines and revamping existing plants. Compatible with original extraction facilities for small‑scale and large‑scale phytic acid factories.
