Membrane Separation Technology for Areca Nut Extract Purification & Concentration

Introduction

Areca nut extract is an important raw material widely used in food deep‑processing and food‑additive industries. Crude areca nut liquid contains large quantities of pigments, colloids, macromolecular impurities and suspended residues. Without proper purification treatment, downstream concentration will face serious problems such as membrane/evaporator fouling, dark‑colored finished products and unstable product quality.

Traditional separation methods like plate‑and‑frame filtration and centrifugation can only remove large‑particle residues. Fine colloids and partial pigments still remain in the liquid, which cannot meet the requirement for high‑purity areca nut ingredients. Cross‑flow membrane separation provides a room‑temperature physical solution for areca nut extract processing, no filter aids or chemical flocculants required.

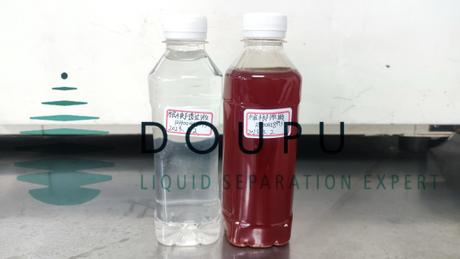

The picture shows actual lab test results of areca nut liquid after membrane filtration. From left to right: clear permeate and pigment‑rich concentrated retentate. Obvious visual contrast intuitively demonstrates the purification and interception performance of membrane technology for areca nut extract.

Working Principle

Driven by pressure, raw areca nut extract flows tangentially over the membrane surface.

Macromolecular substances, pigments, colloids and solid impurities are trapped on the feed side to form retentate. Small‑molecule target active components pass through the membrane and generate clean permeate.

The whole process runs under ambient temperature. It avoids thermal degradation of heat‑sensitive active substances caused by high‑temperature evaporation, and maintains the natural characteristics of areca nut effective constituents.

Main Advantages of Membrane System for Areca Nut Extract

1. Effective removal of pigments and colloidal impurities

   Membrane interception separates most pigments and macromolecule contaminants. The obtained permeate features high clarity, reducing color interference for subsequent finished products.

2. Reduce downstream equipment fouling risk

   After membrane pre‑treatment, the permeate goes to follow‑up concentration. It greatly lowers evaporator blockage and cleaning frequency, extends service life of post‑processing equipment.

3. Pure physical separation, no chemical additives

   No flocculant or filter aid is added during processing. It conforms to food‑grade production requirements for areca nut‑related food ingredients.

4. Flexible scale‑up capability

   Modular membrane skid supports lab test, pilot trial and full‑scale industrial production. It can be connected seamlessly with existing areca nut extraction production lines. Membrane elements are reusable after standard CIP cleaning.

Application Scenarios

• Purification and decolorization of areca nut crude extract

• Pre‑treatment before areca nut liquid concentration

• Production of food‑grade areca nut additives

• Removal of suspended solids and colloids from plant extraction liquid

Process Challenge & Solution

Pigment and colloid fouling is the main challenge during areca nut liquid filtration. Reasonable adjustment of cross‑flow velocity, feed pre‑filtration and complete CIP cleaning after each batch can mitigate membrane fouling and stabilize long‑time running performance. Select suitable membrane material according to actual pH value of areca nut feed liquid.
