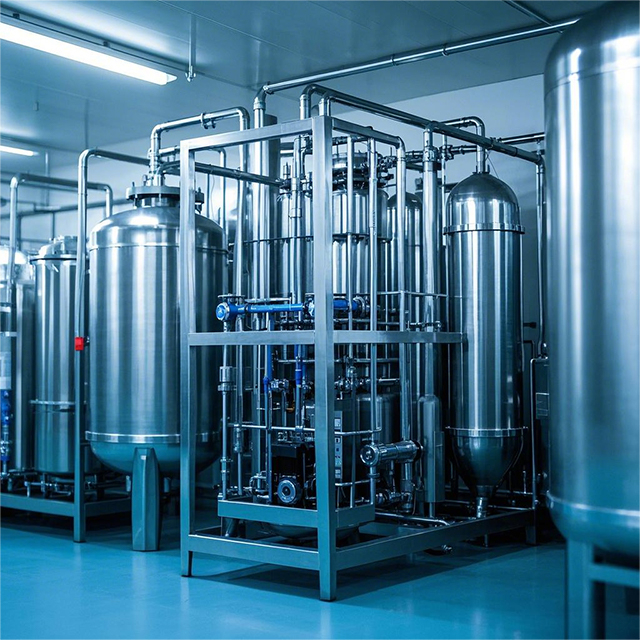

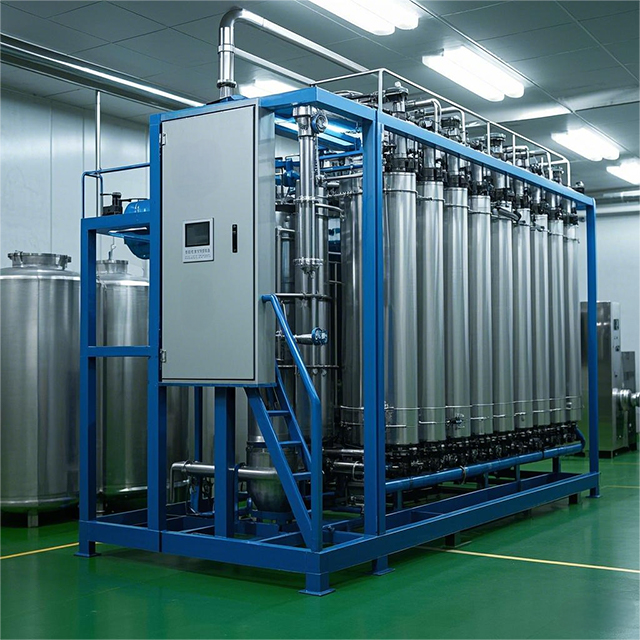

Membrane filtration equipment is an advanced device that uses special semi - permeable membranes to separate, purify, and concentrate liquid mixtures. By applying a pressure difference across both sides of the membrane, certain components in the liquid can pass through the membrane while others are retained, thus achieving effective separation of different substances. This equipment can handle various complex liquid systems and is widely used in multiple industries such as food and beverage, pharmaceuticals, chemical, electronics, and environmental protection. It helps enterprises improve product quality, optimize production processes, and achieve resource recycling and environmental protection.
1.High - efficiency separation: With precise control of membrane pore size, it can perform selective separation based on the molecular size, shape, and properties of different substances. It has a high removal rate for impurities such as tiny particles, bacteria, viruses, and macromolecular organic matter, effectively improving product purity and quality.
2.Energy - saving and consumption - reducing: Compared with traditional separation methods, membrane filtration equipment operates at room temperature without the need for heating or adding a large amount of chemical reagents. It greatly reduces energy consumption and the use of chemical reagents, cutting down operating costs and environmental pollution.
3.Easy to operate: The equipment is equipped with an automated control system. Operators only need to set the operating parameters, and the equipment can automatically complete operation processes such as filtration, back - flushing, and cleaning. The operation process is simple and intuitive, reducing the requirements for operators' professional skills.
4.Strong adaptability: According to different material characteristics and processing requirements, suitable membrane materials and membrane modules, such as ultrafiltration membranes, microfiltration membranes, and nanofiltration membranes, can be selected to meet diverse separation needs. It is suitable for enterprises in different industries and of different production scales.
5.Small footprint: The equipment has a compact structure and a small footprint, which can effectively save production space. It is convenient to install and use in limited sites, especially suitable for enterprises with limited space.
Item | Details |
Materials | 1. Membrane materials: Common ones include Polyethersulfone (PES), Polyvinylidene Fluoride (PVDF), Cellulose Acetate (CA), etc. They have good chemical stability, acid and alkali resistance, and mechanical strength, and can adapt to different separation environments. 2. Membrane module housing: Mostly made of stainless steel or fiberglass reinforced plastic, which are sturdy and durable, with good sealing performance. They can withstand certain pressure and protect the internal membrane elements. 3. Pipes and connectors: Stainless steel or engineering plastics are selected, which are corrosion - resistant and wear - resistant to ensure stable material transmission. |
Purpose | Mainly used for separating, concentrating, purifying and cleaning liquid or gas mixtures. It can remove impurities such as bacteria, viruses, colloids, macromolecular organic matter, and salts in the solution, realizing refined material processing and meeting the requirements of different industries for product quality and production processes. |
Production capacity | 1. Small - scale equipment: The hourly treatment capacity is 0.1 - 1 cubic meters, suitable for laboratories, small processing plants, etc., to meet the needs of small - scale production or experiments. 2. Medium - scale equipment: The hourly treatment capacity is 1 - 10 cubic meters, suitable for medium - sized enterprises for material processing in daily production. 3. Large - scale equipment: The hourly treatment capacity is more than 10 cubic meters, used for large - scale industrial production, such as large chemical enterprises and sewage treatment plants, etc., and can achieve continuous and efficient separation operations. |
Industry applications | 1. Food and beverage: Juice clarification, milk sterilization, wine purification, etc., to improve product quality and stability. 2. Pharmaceutical: Liquid medicine sterilization, active ingredient concentration, removal of pyrogenic substances, etc., to ensure the quality and safety of drugs. 3. Chemical: Catalyst recovery, mother liquor separation, wastewater treatment, etc., to achieve resource recycling and environmental protection compliance. 4. Electronics: Ultrapure water preparation, removing tiny particles and ions in water to meet the water demand of high - precision production such as electronic chip manufacturing. 5. Environmental protection: Sewage treatment, reclaimed water reuse, etc., to achieve the recycling of water resources and reduce environmental pollution. |
Voltage | 1. Small - scale equipment: 220V/50Hz single - phase electricity, convenient to connect to ordinary power supplies, suitable for laboratories and small places 2. Medium - and large - scale equipment: 380V/50Hz three - phase electricity, providing sufficient power to ensure the stable operation of the equipment and meet the needs of industrial production. |
