Membrane Separation Technology for Green Tea Extract Clarification and Concentration

Introduction

Green tea extract contains abundant active substances including tea polyphenols, tea polysaccharides, proteins and colloids. Traditional thermal concentration processes often cause heat damage to heat‑sensitive tea ingredients, resulting in loss of active components, dark color and poor product flavor. Membrane separation, as a low‑temperature physical separation technology, realizes clarification, impurity removal and concentration of green tea aqueous extract without high‑temperature heating. It is widely applied in deep processing of tea drinks, instant green tea and tea functional raw materials.

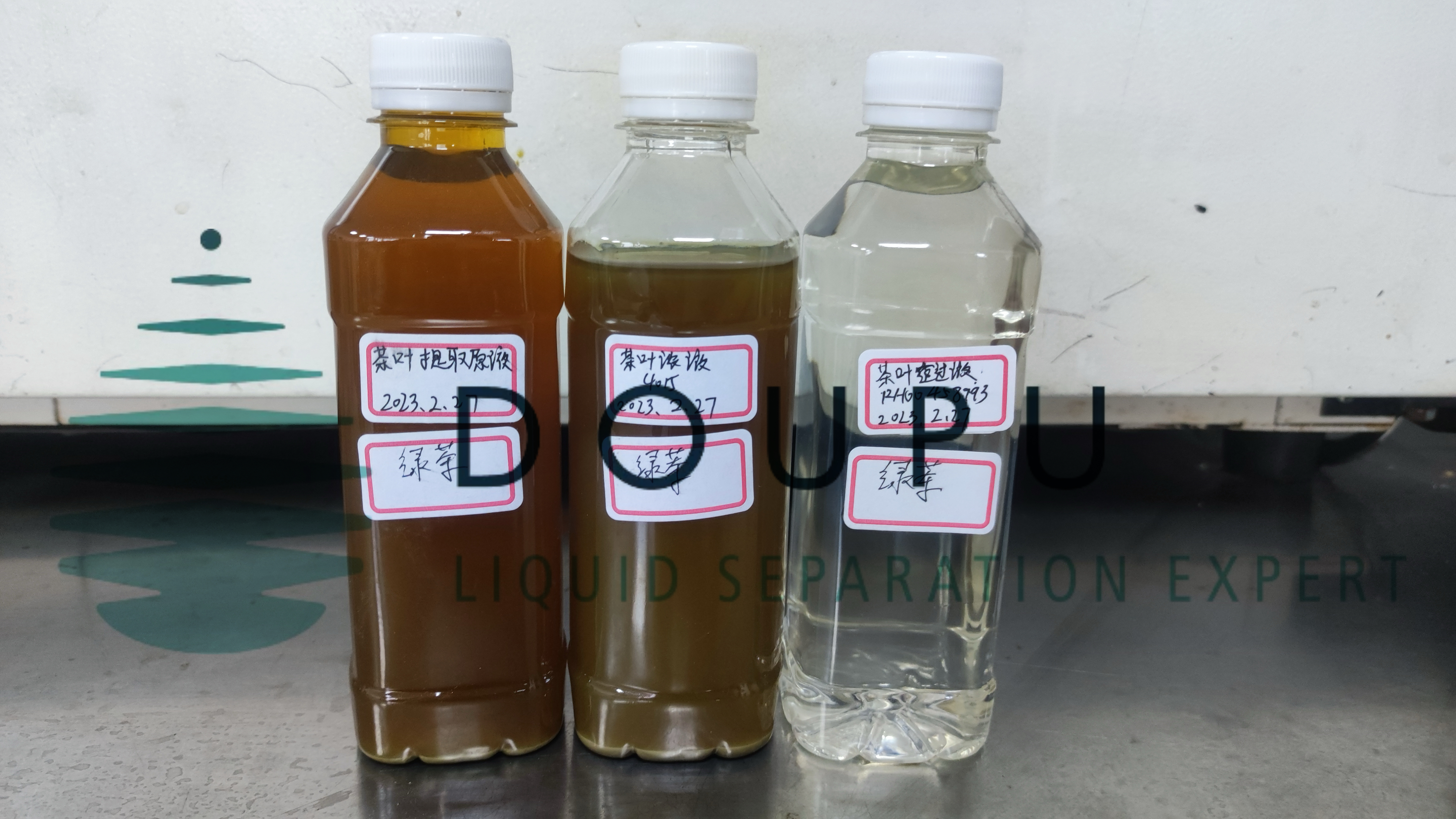

In the lab test picture, three groups of green tea liquid samples show the real effect of membrane separation treatment on tea extract: raw green‑tea extract, membrane retentate (concentrate) and membrane permeate. The obvious difference of liquid color directly reflects the separation performance of the membrane system.

Problems of Traditional Green Tea Extract Processing

1. High‑temperature evaporation will degrade tea polyphenols and other heat‑sensitive active substances, reducing product quality.

2. The crude extract contains fine tea dregs, protein and colloidal impurities, leading to turbidity, easy precipitation and poor stability of finished tea beverage.

3. The whole process consumes large steam energy, and the production cost stays high.

4. Part of small‑molecule flavor substances are lost along with water vapor during heating‑evaporation.

Working Principle of Membrane Treatment for Green Tea Extract

The green tea aqueous leaching liquid flows through the membrane module under pressure drive. According to molecular weight cut‑off difference:

• Macromolecular substances: tea polysaccharides, plant protein, colloids and fine suspended tea residues are intercepted on the feed side to form retentate (concentrate).

• Small‑molecule substances: partial tea polyphenols, flavor components and water pass through the membrane to form clear permeate liquid.

Ultrafiltration completes clarification and impurity removal to remove macromolecule impurities; nanofiltration further performs low‑temperature concentration, removing water and small‑molecule heterologous impurities while retaining target active constituents. The whole set runs at room temperature, no phase change occurs.

Explanation of Three Green Tea Liquid Samples in The Test

1. Green tea raw extract (left bottle)

   Original liquid obtained by hot‑water leaching of green tea. It is dark brown and turbid. It contains not only target tea polyphenols, but also plenty of colloids, protein, fine suspended solid impurities. Without purification treatment, it is easy to turn turbid and precipitate in later storage.

2. Green tea retentate / concentrate (middle bottle)

   Liquid intercepted by the membrane. Most macromolecular tea polysaccharides, proteins and colloids are kept in this fraction. Solid content rises obviously after concentration. This fraction can be further processed to extract tea polysaccharide products.

3. Green tea permeate (right bottle)

   Clear liquid penetrating through membrane elements. After removing most colloidal macromolecule impurities, the liquid becomes transparent and light‑colored. It reserves small‑molecule tea polyphenols and tea flavor substances, which can be used for producing instant green tea and clear tea beverage base liquid.

Core Advantages of Applying Membrane Separation in Green Tea Processing

1. Low‑temperature physical treatment: Room‑temperature operation, no heating. Effectively protect heat‑sensitive tea polyphenols and aroma components, maintain original tea flavor.

2. Good clarification effect: Effectively remove protein, colloid and micro suspended residues, reduce later precipitation risk of tea liquid, improve product stability.

3. Energy‑saving concentration: Replace part of evaporator workload, cut steam consumption and lower comprehensive production cost.

4. Simple process flow: Compact equipment layout, easy automatic operation, less auxiliary agent consumption.

5. Multi‑component fractionation: Realize classified collection of permeate and retentate. Separate tea polyphenols and tea polysaccharides for comprehensive utilization of tea resources.

Typical Application Scenarios

• Instant green tea powder production: membrane clarification + nanofiltration concentration, then spray drying.

• Clear green‑tea beverage raw liquid processing, reduce cold‑turbidity precipitation.

• Separation and extraction of tea functional ingredients: tea polyphenols, tea polysaccharides.

• Purification of tea‑based plant extract for health‑care raw material.
